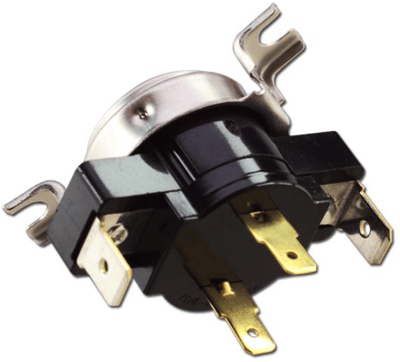

69T Biased Auto Reset Bi-Metal Control
Brand: Emerson Electric Co.
The 69T Line of 3/4” (19 mm) Bimetal Disc Temperature Controls from Therm–O–Disc® offers multiple temperature operation in a unique, cost effective design. The snap–action bimetal disc provides high speed contact separation resulting in exceptional life characteristics at electrical loads up to 25 amps at 240 Vac.
By utilizing heaters mounted internally, the open or close calibration of the bimetal disc can be biased lower. The 69T is a cost–effective alternative in applications where multiple temperature control is required.
Features- Available in automatic reset single pole, single throw and single pole, double throw switch configurations.
- Enclosed or exposed disc.
- Surface mounting, airstream mounting.
- Wide variety of terminals.
Specifications
Brand
Agency Ratings
- UL/CSA/VDE (Consult Catalog for Details)
Maximum Calibration Temperature
- 233° F (111.7° C)
