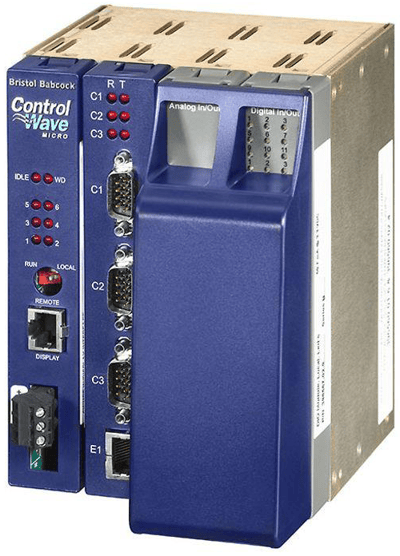

ControlWave® Micro - Hybrid RTU/PLC

Brand: Emerson Electric Co.
Request Information
Favorite

499287_ControlWave_Micro_Hybrid_RTU_PLC_image-2.png 499287_ControlWave_Micro_Hybrid_RTU_PLC_image-3.png 499287_ControlWave_Micro_Hybrid_RTU_PLC_image-4.png 499287_ControlWave_Micro_Hybrid_RTU_PLC_image-6.png 499287_ControlWave_Micro_Hybrid_RTU_PLC_image-5.png
The ControlWave Micro is a highly programmable controller that combines the unique capabilities of a programmable logic controller (PLC) and a remote terminal unit (RTU) into a single hybrid controller.

The ControlWave Micro specializes in oil and gas, water and wastewater, and industrial control applications that maximize the performance of a wide range of control systems with a design emphasis on low power consumption.
Features
  • ARM processor provides exceptional performance and low power consumption.
  • Up to two 10/100 Mbps Ethernet ports.
  • Up to 11 serial communication ports with built-in modem option.
  • Three, four, and eight slot base unit with two, four, and eight slot I/O expansion base.
  • Mixed I/O cards for cost effective small RTU applications.
  • Optional isolated I/O modules.
  • IEC 61131-3 programming with ACCOL III process control function block library.
  • Open standards for programming, network configuration, and communication.
  • Security key-lock to prevent unauthorized access.
  • Wide temperature range (-40 to +70 deg C).
  • Class I, Div. 2 hazardous location approval.
