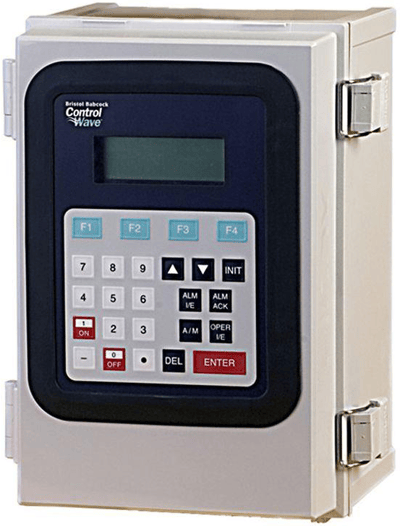

ControlWave® ExpressPAC (Discontinued)
Brand: Emerson Electric Co.ControlWave ExpressPAC is a highly-integrated pre-engineered packaged solution that combines the ControlWave Express RTU with a variety of options commonly required for SCADA applications. These include a compact Nema 4X-rated (3R with battery vent) enclosure, power supply, and solar panel options with battery backup, operator display/keypad input options, and wireless communication options.
Features- Pre-engineered SCADA RTU package solution reduces integration and maintenance costs.
- Multiple serial communication ports for network, local and multi-vendor connectivity.
- Built-in BSAP, Modbus & DNP protocols for broad network compatibility.
- Report-By-Exception for communication efficiency.
- Modbus store and forward capability for geographic flexibility with radio networks.
- Ultra low power modes minimizes cost of solar/battery power systems.
- Wide operating temperature range for remote outdoor locations.
- High Speed ARM based processor.
- Very low power consumption.
- IEC 61131-3 with ACCOL 3.
- Multiple protocol support.
- 10/100 Mbps ethernet port.
Documentation
Product Manuals
Document
- ATEX certification for ControlWave Process Automation Contro pdf 984 KB
- CE certification for ControlWave Process Automation Controll pdf 361 KB
- CE declaration of conformity for ATEX and EMC directives for pdf 324 KB
- ControlWave Express Model Configuration pdf 76 KB
- ControlWave Express PAC RTU pdf 3.4 MB
- ControlWave Loop Power Supply pdf 4.5 MB
- ControlWave Radio Ready Installation Guide D5138 pdf 718 KB
- E192567 pdf 39 KB
- E322987 pdf 67 KB
- Field Removal Replacement of ControlWave series Boot Flash I pdf 184 KB
- Site Considerations for Equip Installation Grounding Wiri pdf 2.6 MB
- UL Class 1 Div 2 certification for ControlWave Express pdf 128 KB
- UL Class 1 Div 2 certification for ControlWave Process Auto pdf 31 KB
