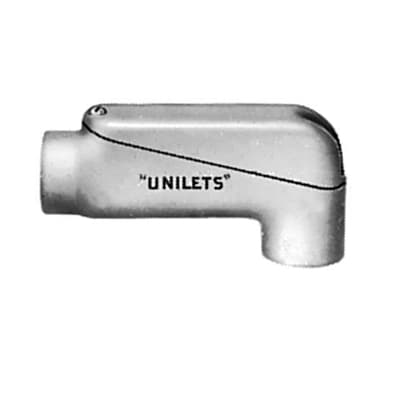

Appleton™ LBD and LBDN Pulling Fittings
Brand: AppletonAppleton™ LBD and LBDN Pulling Fittings facilitate the pulling of large, heavy, and difficult to bend conductors.
They are designed to make 90° bends in conduit and provide straight pull through via hubs in either direction.
Features- Come complete with gasketed covers
- Can also be used as a service entrance fitting
Specifications
Brand
NEC/CEC Certifications & Compliances
- UL Standard: 514B
- UL Listed: E2527
- CSA Standard: C22.2 No. 30
- CSA Certified: 065183
Standard Material
- Gasket: Neoprene or Composition Fiber
- Bodies & Covers: Malleable Iron or Copper-Free (Max. 4/10 of 1 %) Aluminum
Standard Finish
- Aluminum Bodies & Covers: Epoxy Powder Coat
- Malleable Iron Body & Cover: Triple-Coat Finish (1) Zinc Electroplate, (2) Chromate, & (3) Epoxy Powder Coat
