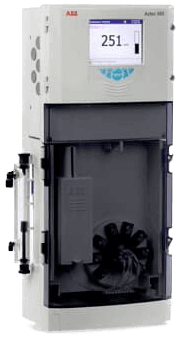

Aztec AW635 High Range Manganese Analyzer

Brand: ABB Group
Request Information
Favorite

The Aztec 600 high range manganese analyzer provides reliable and accurate measurement of manganese levels in surface and ground waters for efficient control of manganese removal processes.

The Aztec 600 high range manganese analyzer provides a wide operating range of up to 10 ppm Mn (10 mg/l), making it ideal for monitoring manganese levels in source waters.

Featuring ABB's intuitive menu-driven software and the unique self-cleaning Aztec fluid handling system, users benefit from an analyzer that is both simple-to-operate and maintain.
Features
  • Analysis of up to 3 sample streams
  • Automatic 2-point calibration
  • Automatic background color compensation
  • Automatic sample dilution to maximize range
  • Self-cleaning measurement system
  • Intuitive software with full color graphical display
  • Data logging and graphical process trending
  • Full audit trail capability
  • Secure data archiving to SD Card

View Details

Specifications

Brand

Measurement Range

  • 0.02 to 10 ppm Mn (0.02 to 10 mg/L)

Accuracy / Maximum Measured Error

  • ± 7 % of Reading or ± 0.005 ppm for 5 to 10 ppm, whichever is greater
  • ± 5 % of Reading or ± 0.005 ppm for 0 to 5 ppm, whichever is greater

Repeatability

  • ± 5 % of Reading or ± 0.005 ppm, whichever is greater

Resolution

  • 0.001 ppm or 1 ppb

Calibration

  • 2-Point, Automatic Calibration

Operating Temperature

  • 5° to 45° C (41° to 113° F)

Sample Temperature

  • 1° to 40° C (32° to 104° F)

Sample Pressure

  • 5 psi Max.

Flow Rate

  • Sample: Continuous 200 to 500 mL/min

Humidity

  • Up to 95 % Relative Humidity, Non-Condensing

Display

  • Color, TFT, LCD with built-in backlight and brightness Adjustment

Environmental Protection

  • IP 31

Materials of Construction

  • Door: Acrylic
  • Lower Tray: 20 % Glass-loaded Polypropylene
  • Main Enclosure: Noryl
  • Electronics Enclosure: 10 % Glass-loaded Polycarbonate

Power Supply

  • 18-36 Vdc optional
  • 100-240 Vac Max. 50/60 Hz ± 10 %

Power Consumption

  • 100 W Max. - DC
  • 75 W Max. - AC

Certifications & Approvals

  • EMC
  • CE
  • cULus
  • LV Directives

Communication

  • PROFIBUS DP V1.0

  • Manganese removal from drinking water:
    • monitoring of source water manganese levels from either surface waters or boreholes. Seasonal changes and water level tables can significantly affect or influence the concentration of manganese in source waters
    • measurement of water post aeration / filtration to monitor removal process / efficiency
