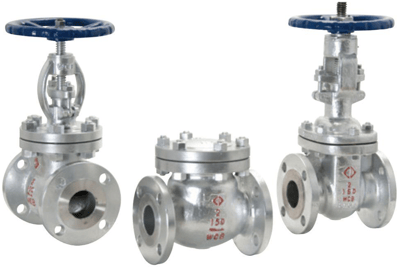

Hancock Cast Steel - ASME 150-600
Brand: Emerson Electric Co.A range of ASME Class 150, 300 and 600 bolted bonnet cast steel valves, with metal-to-metal seating in flanged or butt weld ends.
Features- Internal surfaces are accurately machined to provide maximum performance.
- Renewable body seat rings are made from hardened stainless steel, faced with stellite.
- The wedge in gate valve is cast, hardened, ground, and lapped to ensure positive sealing.
- The disc in globe valve is hardened, ground, and lapped to ensure positive and repeatable sealing over the valve's full pressure/temperature range.
- A precision machined backseat.
- Seats are designed for accurate, repeatable, seating alignment.
- Corrosion inhibited graphite packing and braided graphite filament rings.
- Flat, precision machined and lapped seating surfaces in check valve eliminate damage from high impact seating.
Specifications
Brand
Applications
- Boilers, Cogeneration, General Service, HRSG, Pumps, Valves & Manifolds, Biomass Boiler & Power Boiler, Balance of Plant
Connections Standards
- Flanged: ASME B16.5, Butt Weld: ASME B16.25
Design Standard
- API 600, BS 1873, BS 1868.
End Connections
- Butt Weld, Flanged
Material
- Carbon Steel, Stainless Steel & Alloy Steel
Operating Temperature
- High Temperature
Other Configurations
- Contact Your Local Emerson Business Partner or Sales Office to Learn About Additional Specifications or Options for This Product.
Pressure Class
- ASME Class 150, 300, 600
Testing Standard
- API 598, API 6D (Optional)
