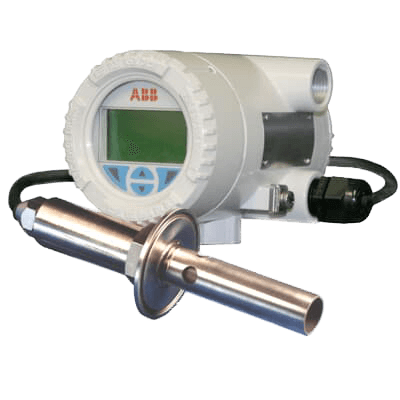

Endura ACA592 2-Wire Field-Mount Conductivity Transmitter

Brand: ABB Group
Request Information
Favorite

ABB's Endura family of analytical transmitters are designed for the requirements of industrial customers.

These 24 Vdc transmitters are used in measurement and control applications across a broad range of industries including chemical, pulp & paper, mining and petroleum refining.

The ACA592 transmitter is compatible with ABB's full range of conductivity sensors.

Automatic temperature sensor recognition for both 2- and 3-wire RTD inputs for common inputs such as Pt100, Pt1000 and 3K Balco is included as standard.

View Details

Specifications

Brand

Communication

  • 4-20 mA with HART (FDT/DTM/EDD)

Certifications & Approvals

  • ATEX
  • IECEx
  • EMC
  • CSA
  • CE
  • RoHS
  • FM

Environmental Protection

  • IP66/ IP67
  • NEMA 4X

Measurement Range

  • 0 to 20,000 µS/cm
  • 0 to 2,000 µS/cm
  • 0 to 200 µS/cm

Resolution

  • 1.0 µS/cm
  • 0.1 µS/cm
  • 0.01 µS/cm
  • 0.001 µS/cm

Accuracy

  • ± 0.1° C (0.18° F) after calibration
  • 1.0 µS/cm
  • 0.001 µS/cm
  • 0.01 µS/cm
  • 0.1 µS/cm

Linearity

  • 1.0 µS/cm
  • 0.1 µS/cm
  • 0.001 µS/cm
  • 0.01 µS/cm

Stability

  • ± 0.1° C (0.18° F) after calibration
  • 1.0 µS/cm
  • 0.1 µS/cm
  • 0.01 µS/cm
  • 0.001 µS/cm

Temperature Element

  • 3k Balco
  • Pt1000
  • Pt100

Cell Constant

  • 0.01, 0.1, 1.0

Power Supply

  • 12-30 Vdc C (Intrinsically Safe Ex ia)
  • 12-42 Vdc

Operating Temperature

  • -20° to 60° C (-4° to 140° F)

Storage Temperature

  • -40° to 80° C (-40° to 176° F)

Humidity

  • < 95 % Relative Humidity Non-Condensing

Enclosure / Body Material

  • Enclosure: Aluminum, Die Cast

Housing Material

  • Powder-Coated Aluminum
