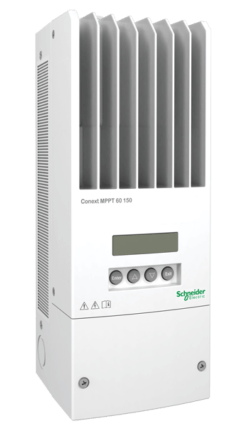

Conext MPPT 60 150 PV Solar Charge Controller

Brand: Schneider Electric
Request Information
Favorite

The Conext™ MPPT 60 150 is a photovoltaic (PV) charge controller that tracks the maximum power point of a PV array to deliver the maximum available current for charging batteries.

When charging, the MPPT 60 150 regulates battery voltage and output current based on the amount of energy available from the PV array and state-of-charge of the battery.

Specifications

Brand

Nominal Battery Voltage

  • 12, 24, 36, 48, 60 V

Battery Voltage Operating Range

  • 0 Vdc to 80 Vdc

Minimum PV Operating Voltage

  • Battery voltage +5 V

Maximum PV Operating Voltage

  • 140 V

Maximum PV Array Open Circuit Voltage

  • 150 V including temperature correction factor

Maximum Array Short-Circuit Current

  • 60 A (48 A @ STC)

Maximum PV Array Rating

  • 5250 W

Maximum Charge Current

  • 60 A (for all battery voltages except 60 V)

Maximum and Minimum Wire Size in Conduit

  • #6 AWG to #14 AWG (10 to 2.5 mm²)

Maximum Output Power

  • 3500 W

Charger Regulation Method

  • Three-stage (bulk, absorption, float) plus manual equalization
  • Two-stage (bulk, absorption) plus manual equalization

Supported Battery Types

  • Flooded, GEL, AGM, Custom

Maximum Power Conversion Efficiency

  • 93 % (nominal 12 V), 96 % (nominal 24 V), 97 % (nominal 36 V), 98 % (nominal 48 V), 99 % (nominal 60 V)

Power Consumption, Night Time

  • 2.5 W

Battery Temperature Sensor

  • Included

Auxiliary Output

  • 5 - 13 V, up to 200 mA

Enclosure Material

  • Indoor, ventilated, sheet metal chassis with 2.2 cm and 2.8 cm (7/8 in and 1 in) knockouts and aluminium heat-sink

IP Degree of Protection

  • IP20

Product Weight

  • 4.8 kg (10.8 lb)

Shipping Weight

  • 8.0 kg (17.6 lb)

Product Dimensions (H x W x D)

  • 36.8 x 14.6 x 13.8 cm (14.5 x 5.8 x 5.5 in)

Shipping Dimensions (H x W x D)

  • 48.3 x 22.9 x 35 cm (19.0 x 9.0 x 9.8 in)

Device Mounting

  • Vertical wall mount

Ambient Air Temperature for Operation

  • -20° C to 45° C (-4° F to 113° F)

Storage Temperature Range

  • -40° C to 85° C (-40° F to 185° F) full power, power Derating above 45° C

Operating Altitude

  • Sea level to 2000 m (6562 ft)

System Network and Remote Monitoring

  • Available with Insight Energy Management

Part Number

  • 865-1030-1

Display Type

  • LCD, 2 lines 16-digits

Safety

  • CSA Certified (UL 1741, CSA 107.1) and CE marked for the Low-voltage Directive (EN 50178)

EMC

  • FCC and Industry Canada (Class B), CE marked for the EMC Directive (EN 61000-6-1, -6-3), C-Tick compliant
