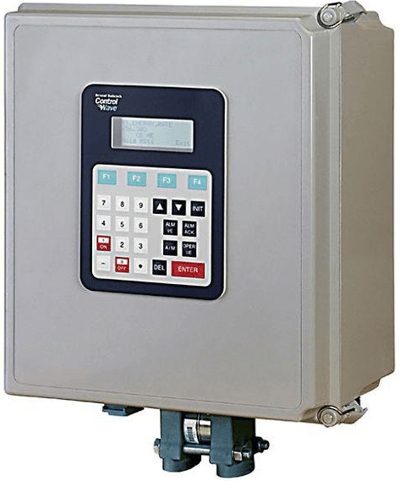

ControlWave® EFM (Discontinued)
Brand: Emerson Electric Co.
ControlWave EFM is a discontinued product as of October 1, 2017.
Features- The ControlWave EFM is a discontinued product as of October 1, 2017. Please refer to the product datasheet for additional product details, including features and specifications.
- Monitor and control of an entire well site, including the well head, meter, separator, compressor, etc. artificial lift and production optimization, (e.g. injection control, plunger lift).
- Multiple-run M&R station automation - flow measurement, run switching, flow/pressure control, control of odorizers and samplers, communication with a chromatograph, and communication on multiple networks.
- Smart transducers for DP, pressure and temperature have been selected and integrated.
- Solar power system engineering and sizing are done.
- Package design, layout and assembly are complete.
- Class I, Division 2 approval has been obtained at the instrument level to eliminate underwriting hassles.
- An application program for 1 - 4 run measurement is built-in.
Documentation
Document
- CE declaration of conformity for ATEX and EMC directives for pdf 324 KB
- ControlWave EFM Gas Flow Computer flier pdf 305 KB
- ControlWave EFM Model Configuration pdf 72 KB
- ControlWave EFM Power System Sizing pdf 450 KB
- ControlWave EFM Standard Integrated Package pdf 622 KB
- ControlWave Electronic Flow Meter EFM pdf 5.4 MB
- ControlWave Flow Measurement Applications Guide D5137 pdf 1.8 MB
- ControlWave Intrinsically Safe Proximity Sensor Interface Bo pdf 676 KB
- ControlWave Loop Power Supply pdf 4.5 MB
- ControlWave Radio Ready Installation Guide D5138 pdf 718 KB
- E192567 pdf 39 KB
- E322987 pdf 67 KB
- Field Removal Replacement of ControlWave series Boot Flash I pdf 184 KB
- Site Considerations for Equip Installation Grounding Wiri pdf 2.6 MB
- UL Class 1 Div 2 certification for ControlWave Express pdf 128 KB
