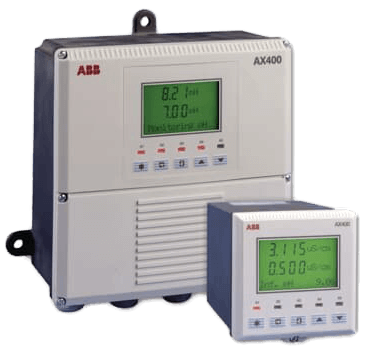

AX416 Dual Channel Transmitter for 2-Electrode Conductivity & pH Sensor

Brand: ABB Group

The AX400 analyzers incorporate the latest technology to provide highly reliable, flexible, feature-packed devices that satisfy a diverse range of process monitoring and control applications.

The complete range encompasses solutions for pH/Redox (ORP), conductivity and dissolved oxygen.

Models AX41x enable continuous measurements of one or two low-level conductivity points with simultaneous local display and retransmission.

The analyzers are used with ABB 2-electrode conductivity cells providing measurements with exceptional accuracy and performance.
Features
  • Cost effective
    • select one or two conductivity inputs or combine conductivity and pH/Redox (ORP) in one analyzer
  • Reduced installation cost
    • easy access terminations; reduced panel space
  • High functionality at minimum cost
    • conductivity, resistivity, difference, ratio, % passage, % rejection and inferred pH calculations
  • Expanded monitoring and control
    • add-on option board provides a total of five alarm relays and four current outputs
    • service logbook providing historical data
  • Energy saving
    • high visibility, backlit display with auto switch-off function
  • Reduced yearly maintenance costs
    • 30 Vdc option negates the need for costly safety tests

Specifications

Range

  • Programmable 0 to 0.5 to 0 to 10,000 µS cm-1
  • -2 to 16 pH or -1,200 to +1,200 mV

Span

  • Minimum any 2 pH Span or 100 mV
  • (10 to 10,000) x Cell Constant

Accuracy

  • 0.01 pH
  • > ± 0.01 % of Span (0 to 100 µS cm-1)
  • > ± 1 % of Reading (10,000 µS cm-1)

Operating Temperature

  • Conductivity: -10° to 200° C (14° to 392° F)
  • -20° to 55° C (-4° to 131° F)

Storage Temperature

  • -25° to 75° C (13° to 167° F)

Humidity

  • Up to 95 % Relative Humidity Non-Condensing

Temperature Compensation

  • -10° to 200° C (14° to 392° F)

Temperature Sensor

  • Balco 3 kΩ
  • Programmable Pt100 or Pt1000

Resolution

  • 0.01 pH

Calibration

  • 0 to 14 pH

Display

  • Dual 5-digit, 7-segment backlit LCD

Communication

  • PROFIBUS DP

Mounting

  • Panel Mounting
  • Pipe Mounting
  • Wall Mounting

Power Supply

  • 12-30 Vdc
  • 85-265 Vac

Power Consumption

  • 10 W

Certifications & Approvals

  • UL
  • CE
  • EMC

  • Water and Waste Water Treatment
  • Power, Pure Water
  • Semiconductors
  • Chemicals
  • Pharmaceuticals
  • Pulp & Paper
