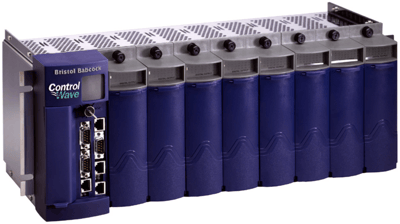

ControlWave® PAC - Process Automation Controller
Brand: Emerson Electric Co.The ControlWave Process Automation Controller is a high-performance hybrid PLC/RTU designed to meet the demanding requirements of industrial control.
It is very flexible and capable of satisfying the requirements of local, expanded, remote, and distributed I/O needs. The controller is ideal for water/wastewater, oil and gas, and industrial control applications.
Features- Powerful, high-performance processor.
- Up to three 10/100 MB Ethernet ports.
- Up to four serial communication ports.
- 4- and 8-slot I/O base unit.
- Hot-swappable I/O.
- Security key-lock.
- Analog outputs maintain last/preset value on CPU watchdog.
- Discrete outputs maintain last or zero value on CPU watchdog.
- Wide temperature range (-40 to +70 deg C).
- Class I, Div. 2 hazardous location and CE approval.
- Open industry standards for programming, configuration, and communication.
- Discrete outputs maintain last or zero value on CPU Watchdog.
Documentation
Document
- CI ControlWave ControlWave Process Automation Controller Ins pdf 5.6 MB
- ControlWave Automation flier pdf 159 KB
- ControlWave HART Device Interface pdf 404 KB
- ControlWave PAC Analog Input Output Modules CWPAC AIO pdf 752 KB
- ControlWave PAC Digital Input Output Modules CWPAC DIO pdf 764 KB
- ControlWave PAC Model Configuration pdf 83 KB
- ControlWave PAC Process Automation Controller pdf 106 KB
- ControlWave PAC RTD and Thermocouple Module CWPAC TEMP pdf 454 KB
- ControlWave PAC Universal Digital Input and Counter Module pdf 656 KB
- Field Removal Replacement of ControlWave series Boot Flash I pdf 184 KB
- Site Considerations for Equip Installation Grounding Wiri pdf 2.6 MB
