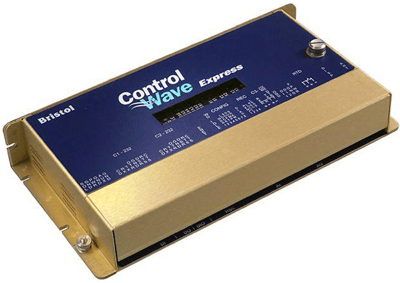

ControlWave® Express
Brand: Emerson Electric Co.
ControlWave Express extends the ControlWave architecture to smaller I/O point count applications such as water pump, tank, well and reservoir control, wastewater lift station, and storm water monitoring. Also, natural gas well, storage, and plunger lift control remote SCADA applications.
Features- High Speed ARM based processor.
- Very low power consumption.
- IEC 61131-3 with ACCOL 3.
- Multiple protocol support.
- 10/100 Mbps Ethernet port.
- Three serial communication ports.
- Time-stamped Alarm and Historical database.
- Built-in FTP server.
- Wide temperature range (-40 to +70 deg C).
- Class 1, Div. 2 Groups approved.
Documentation
Document
- ATEX certification for ControlWave Process Automation Contro pdf 984 KB
- CE certification for ControlWave Process Automation Controll pdf 361 KB
- CE declaration of conformity for ATEX and EMC directives for pdf 324 KB
- ControlWave Express Model Configuration pdf 76 KB
- ControlWave Express SCADA RTU pdf 729 KB
- ControlWave HART Device Interface pdf 404 KB
- ControlWave Loop Power Supply pdf 153 KB
- E192567 pdf 39 KB
- E322987 pdf 67 KB
- Field Removal Replacement of ControlWave series Boot Flash I pdf 184 KB
- Fiscal Measurement and Remote Automation Oil and Gas SCADA pdf 2.7 MB
- Site Considerations for Equip Installation Grounding Wiri pdf 2.6 MB
- UL Class 1 Div 2 certification for ControlWave Express pdf 128 KB
- UL Class 1 Div 2 certification for ControlWave Process Auto pdf 31 KB
