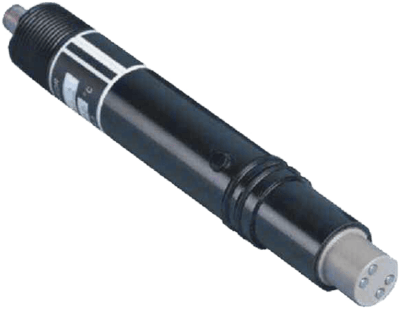

TB454 In-Line/Submersion Type Stainless Steel Electrode
Brand: ABB GroupThe TB454 conductivity cell combines versatility, easy access and low cost into one compact package.
The sensor is suitable for either in-line or submersion installations.
It fits into a 1" NPT receptacle and is inserted with a push and 90-degree twist for in-line installations.
There is also a Ryton®(PPS) holder with screw cap available.
The wide rangeability of this sensor makes it a perfect match for almost all less aggressive conductivity measurements.
Features- 4-electrode measurement
- increases accuracy, stability, flexibility and security
- Rugged construction and materials
- sensors capable of withstanding the toughest chemical processes at extreme temperatures and pressures
- Overcome and compensate for fouling effects
- reduces cleaning frequency
- Extent of fouling notification and fouled sensor relay
- enables conductivity instrument to notify a dirty sensor condition
- Installation flexibility
- in-line, Twist-lock, immersion, Tri-Clamp, flow-cell, TB18 Safe-T-Clean valve and retractable hot-tap
- Suitable for all measurements
- from low to high solution concentrations
- compensates for polarization effects
- Twist-lock insertion simplifies access
Specifications
Brand
Measurement Range
- 0 to 2,000,000 μS/cm
Maximum Pressure
- 690 kPa (100 psi) at 100° C (212° F)
Body Material
- Ryton (PPS)
Material of Construction
- Electrodes: 316 Stainless Steel
- Insulator: Polyether Ether Ketone (PEEK)
- O-Rings: Viton (Internal), Buna-N (External)
Cable Length
- 1.5 to 30.5 m (5 to 100 ft)
Process Connection
- 1” NPT
- Cooling towers
- Water and waste monitoring
- Packaged water systems
