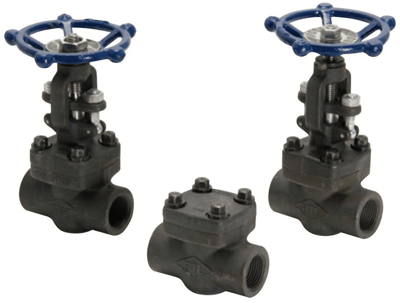

Hancock Forged Steel - ASME 800-1500
Brand: Emerson Electric Co.A range of ASME class 800 and 1500 reduced bore forged steel valves with screwed, socket weld, butt weld or flanged ends.
Features- A compact but extremely sturdy design for high pressure-temperature service.
- Direct metal-to-metal seating make the gate valve ideal for most shut-off applications.
- A precision machined, integral backseat.
- All internal surfaces are accurately machined to provide maximum performance.
- One-piece, die forged body.
- Seats are designed for accurate, repeatable, seating alignment.
- Corrosion inhibited graphite packing and braided graphite filament rings.
- Piston style check valves for horizontal and vertical pipeline applications.
Specifications
Brand
Applications
- Boilers, Cogeneration, General Service, HRSG, Pumps, Valves & Manifolds, Biomass Boiler & Power Boiler, Balance of Plant
Connections Standards
- Screwed (NPT) to ASME B1.20.1 Socket Weld to ASME B16.11 Flanged to ASME B16.5 Classes 150, 300, 600, 1500 Butt-welded ASME B16.25.
Design Standard
- API 602
End Connections
- Screwed, Socket Weld, Butt Weld, Flanged
Material
- Carbon Steel, Stainless Steel & Alloy Steel
Operating Temperature
- High Temperature
Other Configurations
- Contact Your Local Emerson Business Partner or Sales Office to Learn About Additional Specifications or Options for This Product.
Pressure Class
- ASME Class 800, 1500
Testing Standard
- API 598
