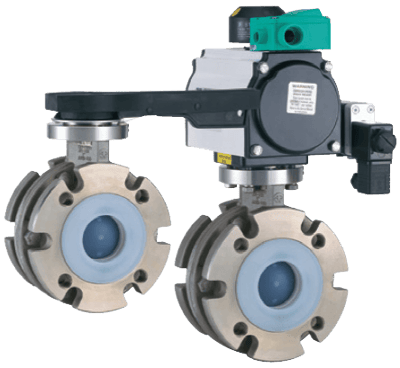

Neotecha Model SNB/SNC, Lined Ball Valve
Images are representations only.

Model SNB/SNC

Brand: Emerson Electric Co.
Request Information
Favorite

PFA lined stainless steel ball valve with short face to face and well proven trunnion mounted design for use in pharmaceutical and bio-engineering industries.
Features
  • PFA lining offers highest corrosion resistance
  • The smooth external surface of the investment cast Stainless Steel body makes the valve an ideal selection for high integrity installations
  • Short face to face dimensions allow easy installation
  • Bubble tight shut-off: precision machined ball and seats guarantee an absolute leak-free valve
  • Full bore offers high Kv-value equal to the pipe
  • One piece ball/stem: protects the integrity of the PFA ball lining, no hysteresis, ideal for flow control applications
  • Anti blow-out shaft design, which can not be affected by the media, according API 609
  • Static electricity: any build-up of static electricity is eliminated since the ball/stem and the housing are of the same potential
  • Constant torque: the unique two-piece body construction together with the spring loaded seats guarantee a constant torque even after months of operation
  • The self adjusting packing is maintenance free and provides a leak free stem seal which is TA-Luft VDI 2440 approved
  • The C ball version is dead space free and allows easy cleaning in line
  • Direct mounting according to ISO 5211

View Details

Specifications

Brand

Direct Mount

  • Yes

Enclosure, Body Details

  • Wafer

Enclosure, Body Material

  • PFA Lined Stainless Steel

Flange Size - 1-1/2” (DN 40)

  • 1-1/2” (DN 40) - 150#
  • 1-1/2” (DN 40) - JIS 10K
  • 1-1/2” (DN 40) - PN 16

Flange Size - 1” (DN 25)

  • 1” (DN 25) - 150#
  • 1” (DN 25) - JIS 10K
  • 1” (DN 25) - PN 16

Flange Size - 2” (DN 50)

  • 2” (DN 50) - 150#
  • 2” (DN 50) - JIS 10K
  • 2” (DN 50) - PN 16

Flange Size - 3” (DN 80)

  • 3” (DN 80) - 150#
  • 3” (DN 80) - JIS 10K
  • 3” (DN 80) - PN 16

Flange Size - 4” (DN 100)

  • 4” (DN 100) - 150#
  • 4” (DN 100) - JIS 10K
  • 4” (DN 100) - PN 16

O-Ring Material

  • Fluor Elastomer

Operating Temperature

  • -40° to 210° C (-40° to 410° F)

Options

  • Bare Shaft
  • Gear Operator
  • Lever Operated

Port

  • 30° V-Port
  • Full

Stem Type

  • C-Ball Stem
  • Standard Ball Stem

Valve Type

  • Manual
