Panel 800 Black Marine Certified Panel

Brand: ABB Group
Request Information
Favorite

"Black" panels comprise of robust, touch screen panels with classic marine features such as dimmable backlight and high brightness display (1000 cd/m2), marine certifications, making them ideal for off-shore, on ships and other marine applications.

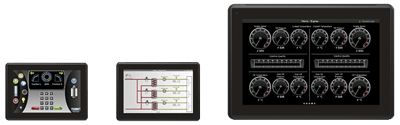

"Black" marine certified panels are available in 7" (PP875M, PP875H) and 15,4" (PP886M) sizes, feature high resolution touch screen display.

Their classic black enclosure offers low light reflection and seamless integration for all on-board applications.
Features
  • Classic black enclosure that offer low light reflection and seamless integration
  • Dimmable backlight to suit varied ambient light conditions
  • High brightness for outdoor use in bright sunlight
  • Fully Marine certified to comply to all major marine standards

View Details

Specifications

Brand

Display Size

  • 7”, 15.4”

Display Resolution (Ratio)

  • PP885M & PP885H: 1280 x 800 (16:10)
  • PP874M: 800 x 480 (16:9)

Display Color

  • TFT Color LCD with 16.7 million colors LED backlight
  • TFT Color LCD, 64k LED backlight

Processor

  • 1.0 GHz Intel Atom™
  • ARM9 400 MHz

Brightness (cd/m²)

  • 450, 500, 1000

Main Memory

  • 128 MB, 1 GB

Ethernet (Shielded RJ 45)

  • 1 x 10/100 Base-T, 1 x 10/100/1000 Base-T
  • 1 x 10/100 Base-T

USB

  • 3 x USB Host 2.0, Max. 500 mA
  • 1 x USB 2.0, Max. 200 mA

Serial Port

  • 1 x RS-232, 1 x RS-422/485 (Isolated)
  • 2 Combined Ports: 2 x RS-232, 2 x RS-422/485

Dimension (W × H × D)

  • PP885M & PP885H: 410 x 286 x 83 mm
  • PP874M: 204 x 143 x 52.2 mm

Weight

  • PP885M & PP885H: 4.4 kg
  • PP874M: 0.8 kg

Mounting

  • Panel Mount and VESA 75 x 75

Frame Material, Front Foil

  • Black Powder-Coated Aluminum, Polyester Autoflex EBA 180L or EB

Power Supply

  • 24 Vdc (18-32 Vdc)

Power Consumption

  • 6.0 W, 28 W

Environmental Protection

  • IP65, IP20, IP66, NEMA 4X

Operating Temperature

  • -15° to 55° C

Storage Temperature

  • -20° to 70° C

Vibration & Shock

  • 0.7 G / 10 G

Certifications & Approvals

  • DNV, GL, ABS, LR, KR
  • UL/cUL 508
  • UL/cUL 61010-2-201 (Replacement for UL 508)
  • CE: EN 61000-6-4, EN 61000-6-2
  • RoHS compliance: EN 50581: 2012
  • WEEE compliance: DIRECTIVE/2012/19/EU
