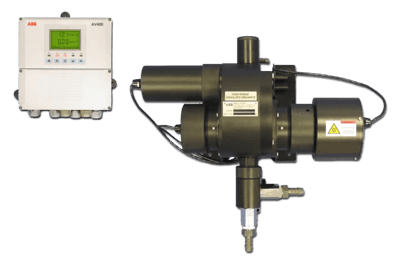

AV420 Dissolved Organics Monitor

Brand: ABB Group
Request Information
Favorite

AV420 single-channel high-level dissolved organics monitors act as surrogate color monitors on coagulation control applications to provide early warning of increase in organics from decay of algae blooms for potable water treatment plants.

Long term field trials have shown that maintenance demands on these applications are minimal.
Features
  • Dual input gives two measurements in one instrument, each input can be either high range or low range
    • cost-effective
  • Surrogate color measurement
    • significant savings on operational costs through lower maintenance requirements
  • Savings on alum or ferric are achieved on potable water treatment plants
    • coagulation control cost saving
  • Less alum, less sludge
    • reduced sludge disposal costs
  • THM (trihalomethanes) precursor alert
    • provides advanced warning of increased risk of THM development
  • Automatic compensation for turbidity
    • reduces initial capital expenditure, minimizing operational costs
  • Reagentless operation
    • significant savings in operational expenditure
  • On-line diagnostics
    • cleaner failure, loss of signal, out of sample

View Details

Specifications

Brand

Range

  • 0 to 100 mgl-1 C

Linearity

  • ± 2 % of Reading or 0.5 mgl-1 C whichever is greater

Reproductivity

  • ± 0.5 mgl-1 C

Flow Rate

  • Sample: 0.5 to 5 L/min

Sample Temperature

  • 0° to 40° C (32° to 104° F)

Sample Pressure

  • 3 bar (43.5 psi) Max.

Display

  • Dual 41/2-digit, 7-segment backlit LCD

Resolution

  • ± 0.1 mgl-1 C
  • Output: 0.1 % at 10 mA, 0.05 at 20 mA

Accuracy

  • ± 0.25 % FSD ± 5 % of Reading

Output

  • 0 to 10 mA, 0 to 20 mA or 4 to 20 mA

Power Supply

  • 100-240 Vac, 50/60 Hz (90-264 V)
  • Optional 12-30 Vdc

Power Consumption

  • 20 W

Environmental Protection

  • IP65

Cable Type

  • Standard 5 or 7 x M20 cable Glands
  • N. American 7 x knockouts suitable for 1/2 in. Hubble Gland

Operating Temperature

  • 0° to 50° C (32° to 122° F)

Storage Temperature

  • -25° to 75° C (-13° to 167° F)

Humidity

  • Up to 95 % Relative Humidity, Non-Condensing

Certifications & Approvals

  • UL
  • CE
  • EMC

  • Potable Water Treatment
